♦Breaker’s overall length reduced Alows chisel to conveniently
♦move backwards.
♦Easy maintenance
Product Introduction
Application Areas
It is widely used in narrow trench excavation, demolition and reconstruction, mining, various engineering construction and metallurgical industries.
Advantages
▪ Its compact design, lacking a housing, makes it small, lightweight, and easy to operate. Furthermore, it’s 40% lighter than similar box-type hammers.
▪ Easy to transport and install, allowing for flexible operation in confined spaces.
▪ Optimized fluid dynamics improve structural strength, enhancing overall structural stability and reliability.
▪ No-load operation is possible, with high frequency and strong impact force.
▪ Equipped with a centralized lubrication system and an environmentally friendly channel with a water spray function, it reduces dust, is environmentally friendly, and saves energy.
▪ An additional oil drain port prevents false faults and facilitates maintenance.
| Description /Model | GB40 |
| Operating Weight | 100 |
| Setting Pressure | 140 |
| Operating Pressure | 90~120 |
| Oil Flow Range | 15~25 |
| Impact Rate | 700~1,200 |
| Hose Diameter | 1/2 |
| Tool Shank Diameter | 0.5~1.5 |
| Applicable Carrier Weight | 45-50 |
| Noise Level | 85 |
Technical Specifications
| Description/Model | UNIT | GB40 | GB45 | GB53 | GB58 | GB68 | GB75 | GB85 |
| Operating Weight | Kg | 100 | 120 | 216 | 226 | 320 | 445 | 600 |
| lbs | 220 | 264 | 475 | 497 | 704 | 979 | 1,320 | |
| Setting Pressure | bar | 140 | 140 | 150 | 150 | 160 | 180 | 180 |
| psi | 2,030 | 2,030 | 2,175 | 2,175 | 2,320 | 2,611 | 2,611 | |
| Operating Pressure | bar | 90~120 | 90~120 | 90~120 | 90~120 | 110-140 | 120-150 | 130-160 |
| psi | 1,280~1,707 | 1,280~1,707 | 1,280~1,707 | 1,280~1,707 | 1,565~1,991 | 1,707~2,134 | 1,849~2,276 | |
| Oil Flow Range | l/min | 15~25 | 20~30 | 25~40 | 25~50 | 40~70 | 50~90 | 60~100 |
| gal/min | 4~7 | 5~8 | 7~11 | 6.5~13 | 10.5~18.5 | 13~24 | 16~26.5 | |
| Impact Rate | bpm | 700~1,200 | 450~700 | 350~600 | 350~500 | 300~450 | 250-400 | 200-350 |
| Hose Diameter | inch | 1/2 | 1 | 1 | 1 | 1-1/4 | 1-1/4 | 1-1/4 |
| Tool Shank Diameter | mm/inch | 40/1.6 | 125/4.9 | 135/5.3 | 140/5.5 | 155/6.1 | 165/6.5 | 175/6.9 |
| Applicable Carrier Weight | ton | 0.5~1.5 | 1.2~3.0 | 2.5~4.5 | 3.0~4.5 | 4~7 | 6~9 | 7~14 |
| lbs | 1,102~3,306 | 2,645~6,613 | 5,511~9,920 | 5,511~9,920 | 8,818~15,432 | 13,227~19,841 | 15,432~30,864 | |
| Noise Level | Lₚₐ(dB) | 85 | 90 | 89 | 89 | 89 | 88 | 88 |

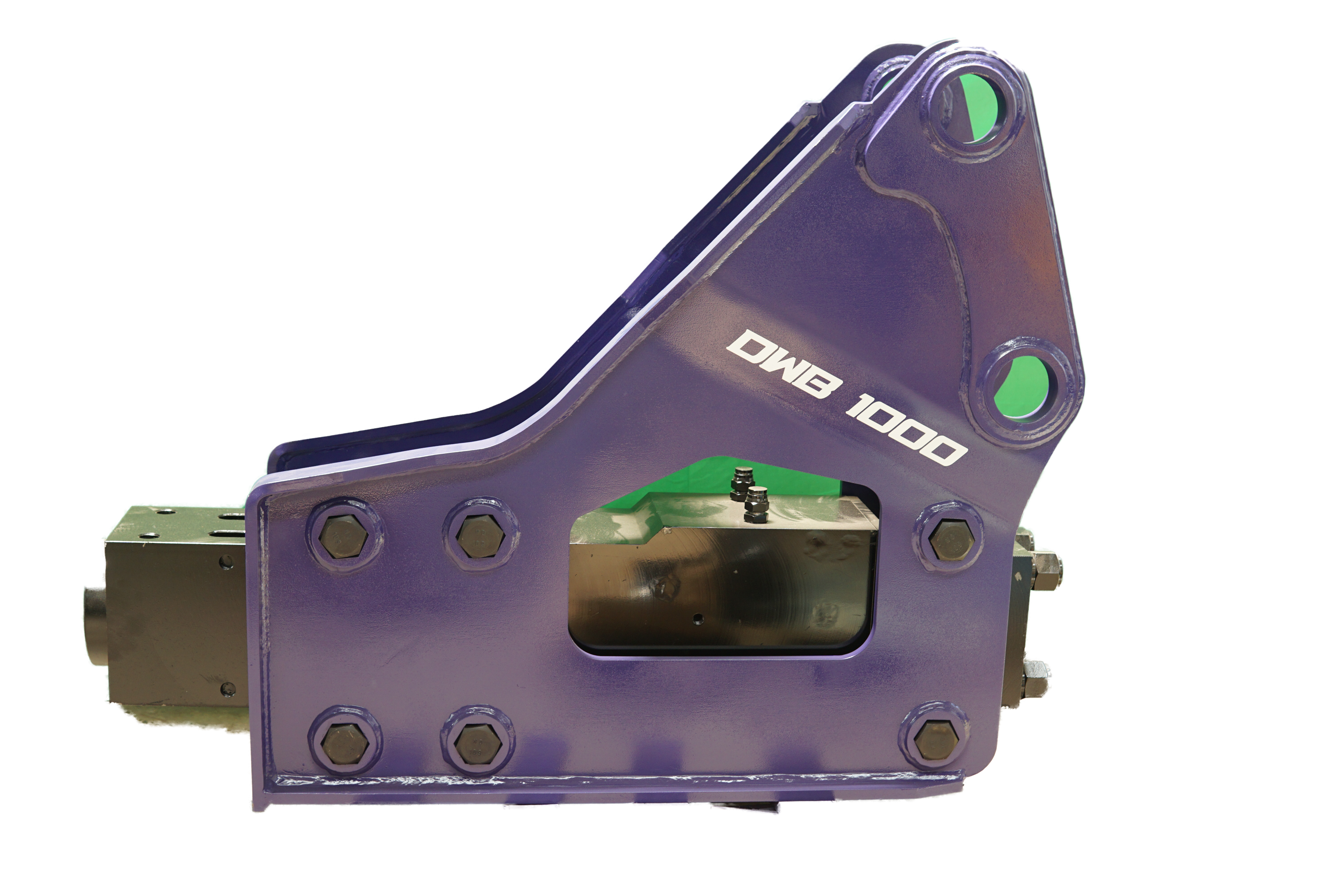

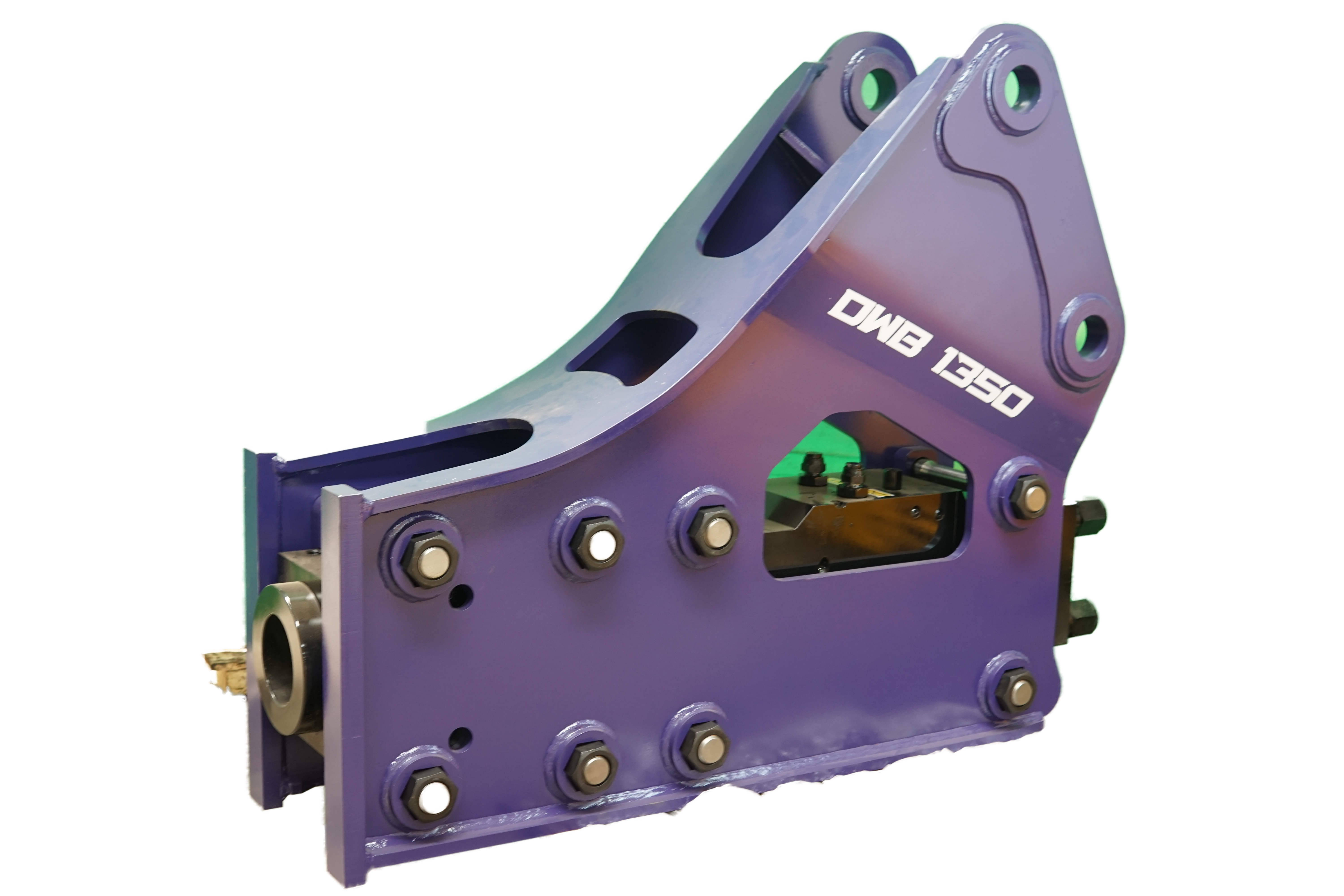

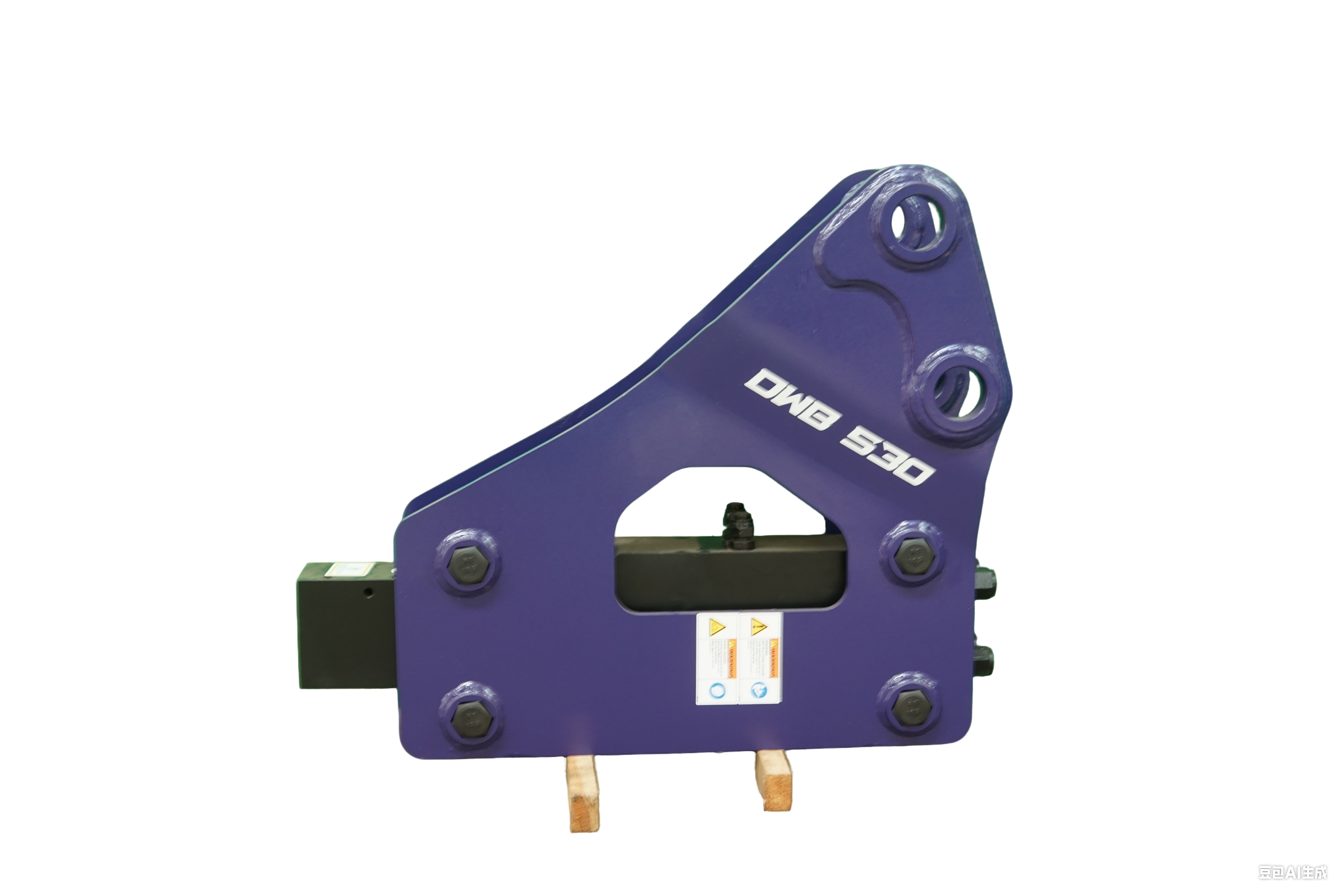

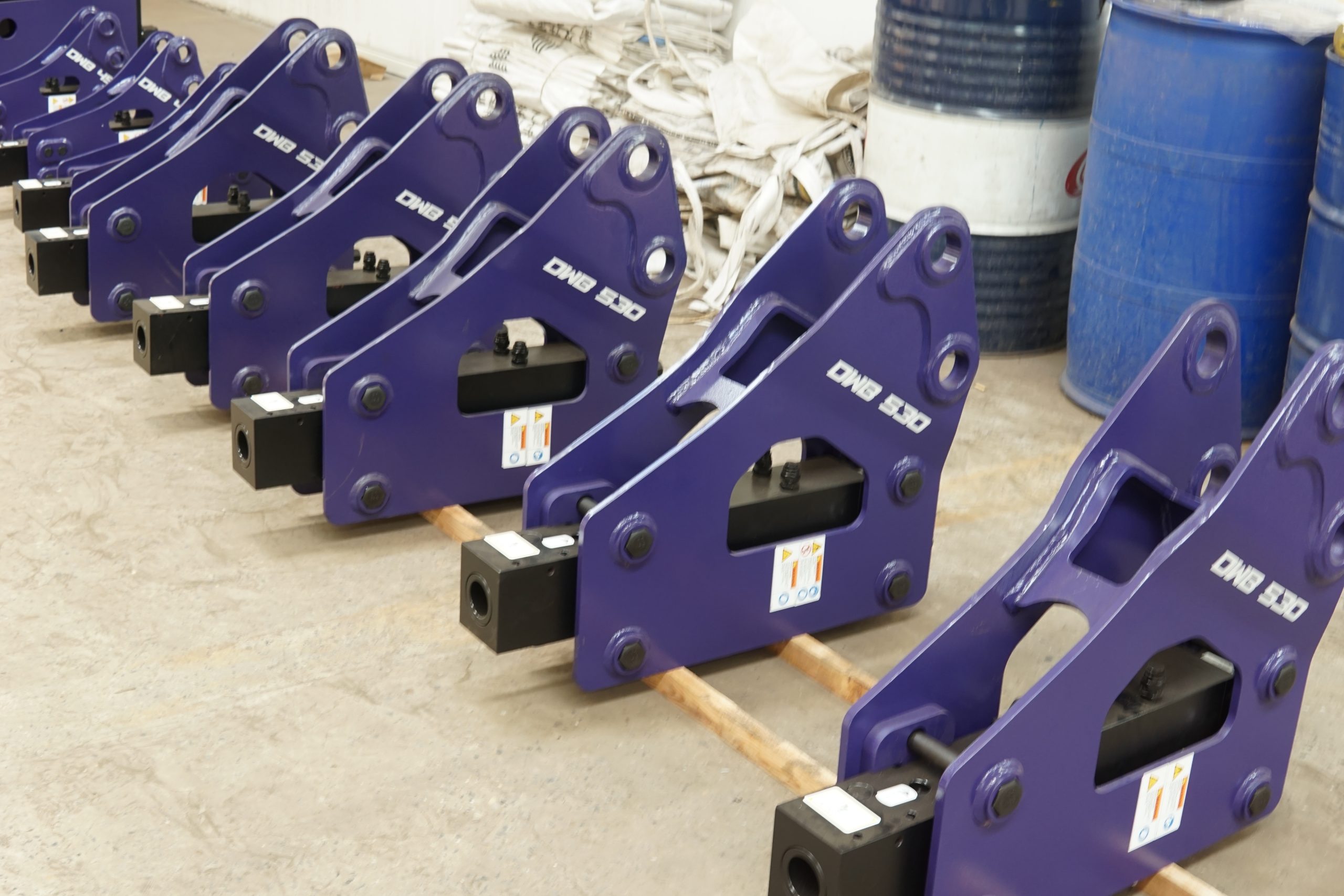

Product images
